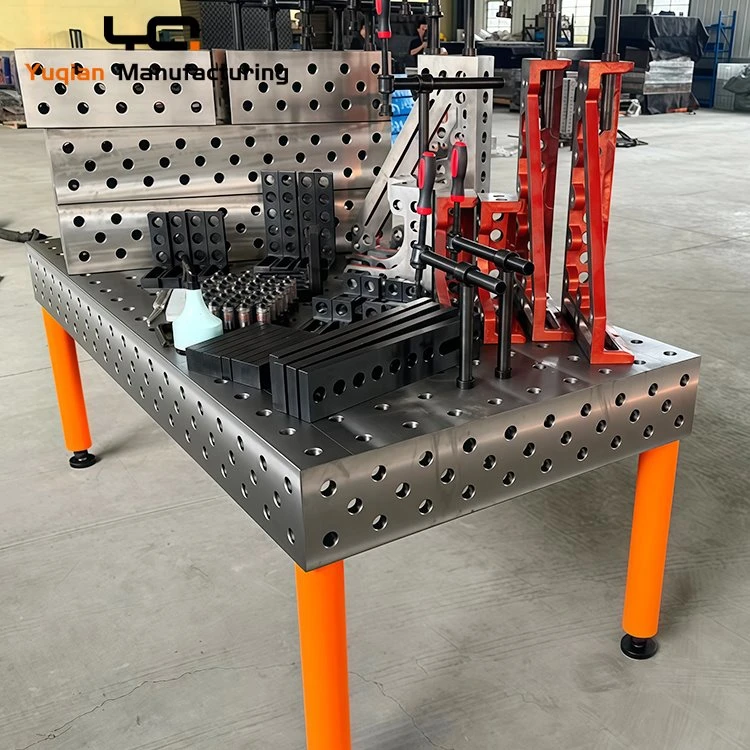

The nitrided 3D welding table platform serves as a modular tooling foundation for precision welding, assembly, and inspection. Constructed from high-strength cast iron or structural steel, the platform undergoes precision machining followed by a specialized gas-nitriding surface hardening process. It features a standard hole grid system that, when paired with a comprehensive set of accessories, enables rapid tooling setup without the need to repeatedly fabricate custom fixtures.
Product Parameters
|
Specifications |
Parameter Description |
|
Product Name |
Nitrided 3D Welding Table |
|
Hole Type |
D16(Φ16mm) / D28(Φ28mm) |
|
Grid Pitch |
50×50mm / 100×100mm |
|
Material |
HT300 High Strength Cast Iron / Q355B Structural Steel |
|
Surface Treatment |
Nitriding / Ion Nitriding |
|
Nitrided Layer Depth |
0.25–0.45 mm |
|
Surface Hardness |
HV 800 ~ 1200 |
|
Flatness |
≤0.02~0.05mm / 1000mm |
|
Standard Sizes |
1000×1000 / 1200×1600 / 1500×2000 / 2000×3000mm(支持定制 Custom sizes available) |
|
Accessories |
Support legs, positioning pins, toggle clamps, angle brackets, clamping bolts |
Product Advantages
Versatile Clamping Options
The 3D welding table features a wide range of clamping options, allowing you to securely fasten various workpieces and easily handle complex welding projects.
Heat and Spatter Resistance
The cast iron construction offers excellent resistance to heat and weld spatter, ensuring the table maintains its integrity even after prolonged use.
Easy Cleanup
The smooth surface makes post-welding cleanup effortless, saving you valuable time and energy.
Customizable
Available in various dimensions and shapes (including irregular, circular, and extra-large configurations).
Adaptable to Diverse Applications
Suitable for a wide range of forms, specifications, and sizes-accommodating everything from small precision parts to large structural components with precision.
Customizable Hole Patterns
Supports D16/D28 standard hole systems; hole diameters are precision-matched to positioning accessories to meet specific operational requirements.
